Specifications:

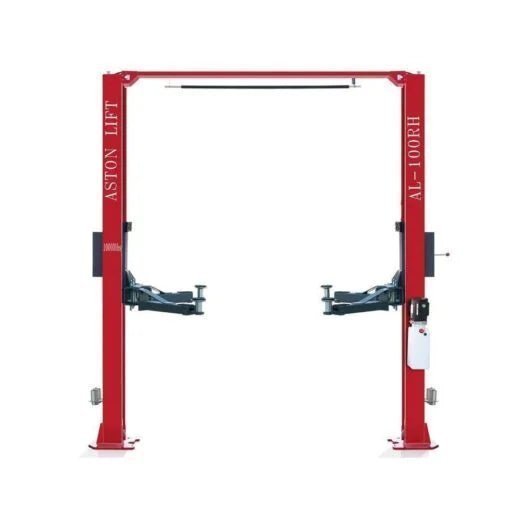

| Model | AL-100RH |
| Capacity | 10000 lbs. |
| Max Lift Height | 72″ (1830mm) |
| Minimum Pad Height | 4.33″ (110mm) |
| Overall Height | 147″ (3720mm) |
| Overall Width | 135″ (3430mm) |
| Width Between Columns | 111″ (2820mm) |
| Drive thru Clearance | 104″ (2650mm) |
| Lifting Time | 40s (Adjustable) |
| Lowering Time | 30s (Adjustable) |
| Column Thickness of Steel | 0.24″ (6mm) |
| Carriage Thickness of Steel | 0.24″ (6mm) |
| Arms Thickness of Steel | 0.24″ (6mm) |
| Motor Power | 3.0kw |
| Voltage | 220V 1ph |
| Noise | <70db |
| Net weight | 2101 lbs. (953kg) |
| Gross weight | 2145 lbs. (973kg) |
| Packing size | 147″ x 18″ x 30″ (3720x460x750mm) |
| Pump Packing size | 36″x12″x14″ (900x300x350mm) |
We've gone paperless! To help the environment & to protect our customers during these times, we don't ship our products with paper manuals that get thrown away 30 seconds after anyway, below we have a comprehensive PDF & Video guide on how to install/use all of our products correctly so it's crystal clear for you!
Inside this thorough PDF guide you can find FAQs to most of your concerns please take a look inside and use the contents page to find what you're specifically looking for.
Here's PDF guide you can access at anytime 💡
