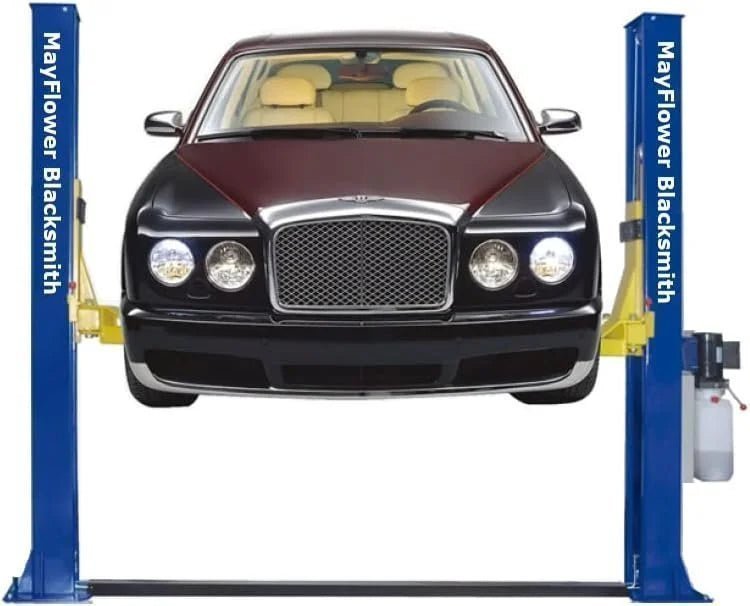

– Driving Mode: Heavy Duty Two hydraulic cylinders, chain drive
– Voltage: 220 Voltage
– Lifting weight capacity: 9,000 lbs
– Lifting height max: 71″
– Lifting height max with Truck Adapter: 75″
– Overall Height: 111″
– Overall Width: 132″
– Width between Posts: 106″
– Drive Thru Width: 98″
– Lifting Time: 40 sec – 50 sec
– Motor: 220V 60Hz 1 Phase / 3 Horse Power
– Front Arm assembly 2 Stage reach from 28″ to 42″
– Rear Arm assembly 2 Stage reach from 32″ to 62″
– Double two-point safety lock release with built-in 18 locking positions
– Automatic arm lock restraints
– Drop-in type lifting pads and truck adapters included
– Relief valve built-in power pump to prevent overloading
– Heavy duty 3/10″ diameter cable and 3 2/5″ pulley that reduce high stress on synchronization process and increases cable life
– Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
– Floor concrete requirement: 4″ Depth, 3000 PSI Rebar Reinforced
– Anchor bolts/mounting hardware included
– 1 set of 4″ Truck adapters included
– Door guard protection rubber is optional
– Blue Powder coated finish provides superior resistance against corrosion.
– Shipping Weight: 1250 LB
