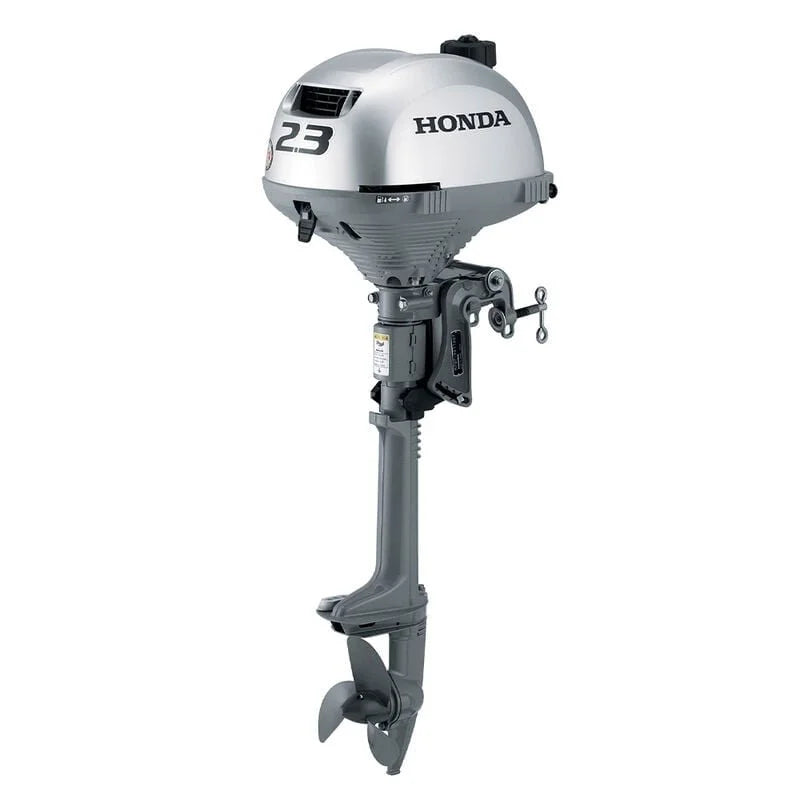

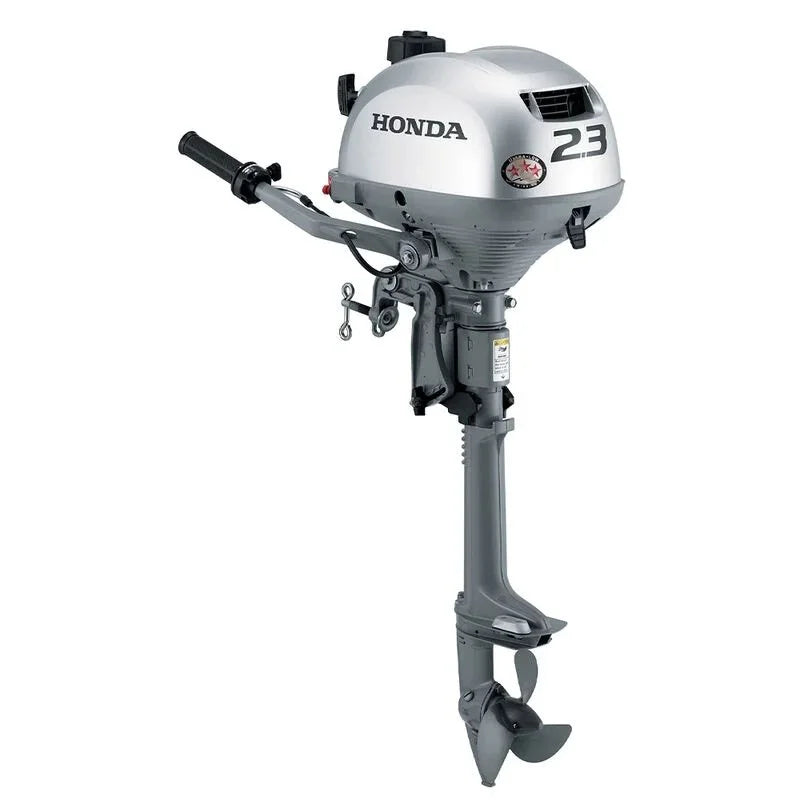

Honda BF2.3 Portable Outboards Motors

The Best Things Come in Small Packages.

That’s especially true with the Honda BF2.3, one of the world’s lightest four-stroke outboards. The BF2.3 is so light, it rivals many electric motors, without the battery. But just because it’s lightweight (29.5 lbs.) doesn’t mean it cuts back on power. The BF2.3 features 15% more power over its predecessor. It also provides excellent maneuverability in tight areas. With full 360° steering and pivoting tiller handle, you get full thrust in any direction and enjoy quick, easy maneuvering. Plus the 12% larger internal gas tank provides for about one hour of operation at wide open throttle. It’s technologically advanced design gives you power and performance – without sacrificing portability.

TOP FEATURES

Reliable, Efficient 4-Stroke Design
World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing.

More Power Without Sacrificing Portability
With 15% more horsepower over its predecessor, this ultra lightweight powerhouse produces surprising speed and maneuverability.

Lightweight And Compact
The BF2.3 is incredibly light and easy to transport. Weighing less than 30 pounds, it’s the ideal engine for dinghies, car-toppers, and other types of small boats.

Precise Throttle Control
A twist grip throttle allows for precise throttle control. The throttle tensioner minimizes driver fatigue.

Forced Air Cooled Engine
The air-cooled block eliminates concern over clogged water pumps and debris being sucked into the power head, while also reducing maintenance.

Ultra Low 3-Star CARB Emissions
Environmentally conscious technology. All Honda Marine engines exceed the highest CARB 3-Star rating to meet the rigorous California Air Resource Board’s standards.

True 5-Year Warranty For Unmatched Peace Of Mind
Honda’s True 5 Warranty is the best in the business. This transferable, non-declining warranty is the same on the first day as it is on the last.

Easy-Starting, Maintenance-Free Transistor Ignition
Maintenance-free, high-energy output for quick and easy starts.

Easy To Carry And Install
A front-mounted carrying handle provides superior portability and ease of installation.

360° Swivel Steering For Added Maneuverability
Provides excellent maneuverability in tight areas as well as full thrust in reverse (at 180°).

Centrifugal Clutch For Better Performance
The centrifugal clutch maintains a smooth idle and, when advanced, automatically engages the prop above idle speed. It’s like having a neutral position.

Convenient Fold-Down Tiller
The BF2.3 tiller folds up or down for easy stowing.

4-Front Corrosion Protection System Fights The Elements
A patented, “Double-Sealed” multi-layered paint process, sacrificial anodes, stainless steel technology, and waterproof connectors enhance corrosion protection.

Internal Fuel Tank For Easier Portability
With 12% more capacity over its predecessor, the BF2.3 now runs up to 60 minutes at full throttle on a tank of fuel. The internal tank facilitates easy removal and portability as a single unit.

Easy Maintenance
Convenient oil fill and drain.

Steering Friction Adjustment
Allows you to adjust steering tension for ease in maneuverability.

Adjustable Trim
Four manual settings ensure proper trim angle for maximum performance.

Shallow Water Drive
Allows you to run in shallow water and greatly reduces the risk of engine damage.

Propeller Included
A shock-resistant plastic propeller comes standard.

Carburetor Drain Screw For Easy Storage Prep
Allows quick and easy draining of the carburetor’s float bowl for extended storage periods.

Dual Lockable Transom Clamps
Provides extra security when mounted to the transom.

Sheer And Cotter Pin Keeper
The self-contained keeper stores two extra sets of cotter and sheer pins close at hand, so you’ll be prepared if and when you need them.

SPECIFICATIONS

Honda Model No. BF2.3DHLCH

Engine
Type: 4-Stroke OHV, 1 Cylinder / 2 Valves
Displacement: 57.2 cc (3.49 cu.in.)
Bore & Stroke: 45 mm x 36 mm (1.8″ x 1.4″)
Full Throttle RPM Range: 5,000 – 6,000 rpm
Rated Power: 2.3 hp (1.7 kw)
Cooling System: Forced Air
Ignition System: Transistorized
CARB Rating: 3-Star Ultra Low Emission
Fuel: Unleaded 86 Octane
Fuel Tank Capacity: 0.29 gal. (1.1L)
Starting System: Recoil
Exhaust: Under Water, Above Propeller
Lubrication: Oil Slinger System
Trim Range: 4-Stage (5°, 10°, 15°, 20°)
Tilt Range: 75°

Drive
Gear Ratio: 2.42:1
Steering Angle: 360° Pivot
Propeller: 3-Blade Plastic
Diameter x Pitch: 7.25″ x 4.75″

Dimensions
Overall Width: 11.2″ (285 mm)

Transom Height
L-Type (20″ Shaft): 22.5″ (571 mm)

Dry Weight
L-Type (20″ Shaft): 31 lbs. (14 kg)
