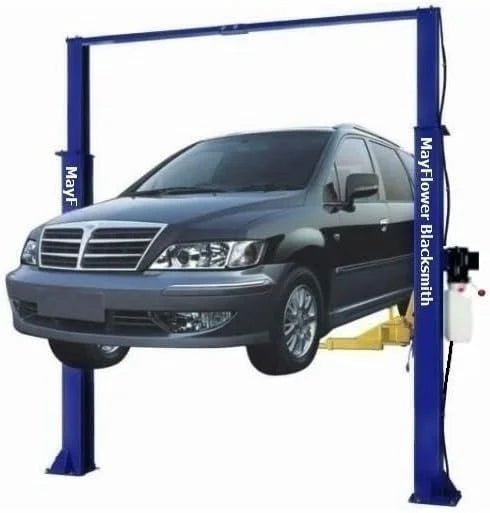

Mayflower Blacksmith Heavy Duty Clear Floor Two Post Lift Car lift CF 9000 lbs

Name: Mayflower Blacksmith Heavy Duty Clear Floor Two Post Lift Car lift CF 9000 lbs
Brand: TryIlluminate
SKU: 2427543
Price: 1716.0 USD
Availability: InStock

$1,716.00

FAST & FREE Shipping Worldwide

30-Day Money Back Guarantee

Buy Now, Pay Later With Klarna

Mayflower Blacksmith Clear Floor Overhead Two Post Lift Car lift CF9000 lb

Driving Mode: Heavy Duty Two hydraulic cylinders, chain drive
Voltage: 220 Voltage
Lifting weight capacity: 9,000 lbs
Lifting height max: 71″
Lifting height max with Truck Adapter: 75″
Overall Height: 146″
Overall Width: 135″
Width between Posts: 109″
Drive Thru Width: 92″
Lifting Time: 40 sec – 50 sec
Motor: 220V 60Hz 1 Phase / 3 Horse Power
Front Arm assembly 2 Stage reach from 28″ to 42″
Rear Arm assembly 2 Stage reach from 32″ to 62″
Double two point safety lock release with built-in 18 locking positions
Automatic arm lock restraints
Drop-in type lifting pads and truck adapters included
Relief valve built in power pump to prevent overloading
Heavy duty 3/10″ diameter cable and 3 2/5″ pulley that reduce high stress on synchronization process and increase cable life
Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
Floor concrete requirement: 4″ Depth, 3000 PSI Rebar Reinforced
Anchor bolts/mounting hardware included
1 set of 4″ Truck adapters included
Door guards protection rubber is optional
Blue Powder coated finish provides superior resistance against corrosion.
Shipping Weight: 1350 LB

PDF guide

We've gone paperless! To help the environment & to protect our customers during these times, we don't ship our products with paper manuals that get thrown away 30 seconds after anyway, below we have a comprehensive PDF & Video guide on how to install/use all of our products correctly so it's crystal clear for you!

Inside this thorough PDF guide you can find FAQs to most of your concerns please take a look inside and use the contents page to find what you're specifically looking for.

Here's PDF guide you can access at anytime 💡

Click Here for the New & Updated PDF

Click Here to watch our video guide

Mayflower Blacksmith Heavy Duty Clear Floor Two Post Lift Car lift CF 9000 lbs

$1,716.00
